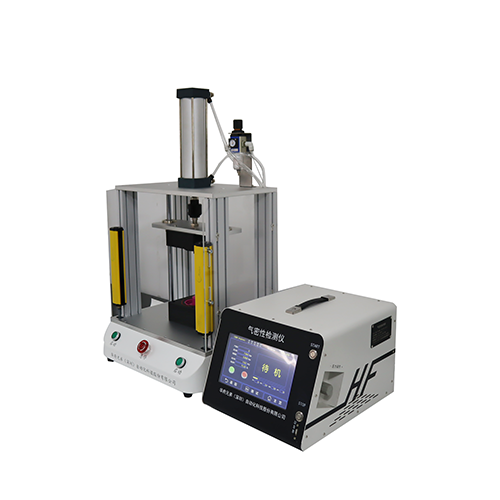

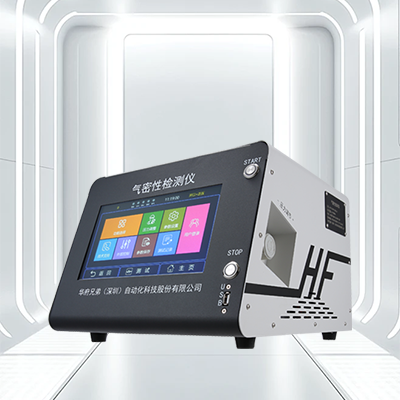

Multifunctional Leak Detector
-
Type: WF Series 6th Generation
The Multi-function Leak Detector is a leak testing equipment device that is suitable for a variety of detection technologies, such as direct pressure method, flow method, differential pressure method and helium leak testing equipment method. It can flexibly respond to different test needs and provide comprehensive and accurate leak testing equipment results. The detection accuracy is as high as 0.1PA and the detection speed is as fast as 3 seconds. And through advanced sensor technology, it can accurately detect tiny leaks, comprehensively covering air leakage testing, IPX waterproof testing, waterproof testing, leak testing equipment and other products of various types!
Contact us

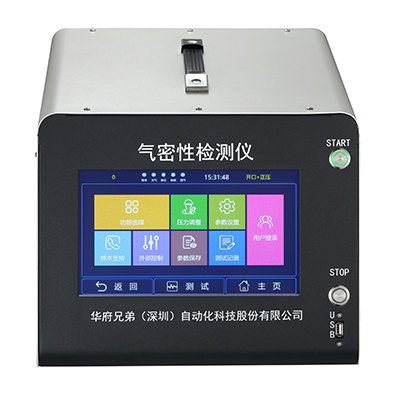

Detailed display

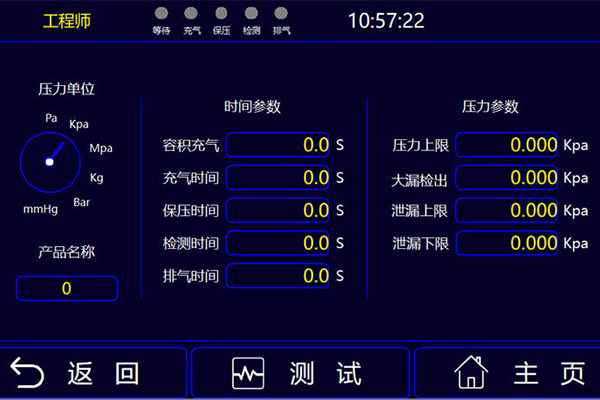

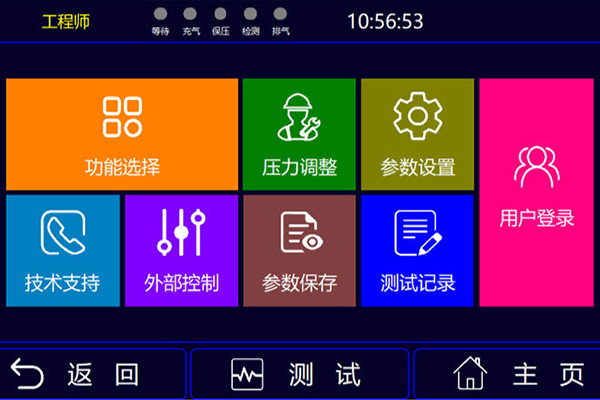

Interface UI

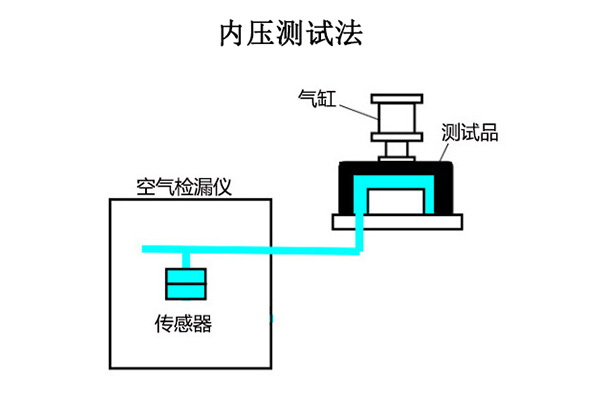

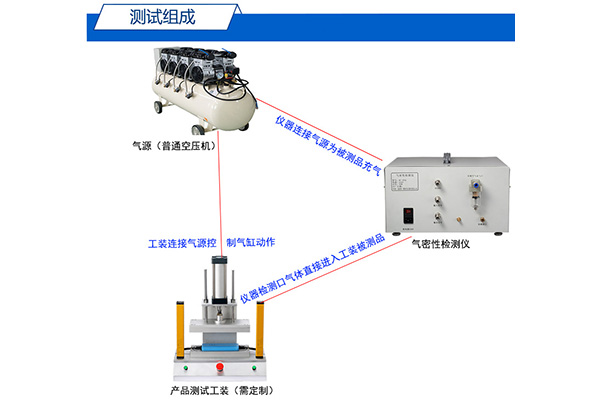

Detection method
Product advantages
1. Wide application fields
2. Multiple testing methods
3. Multiple patents
4. Up to eight channels of detection
Product parameters
| Product Benefits | |
|---|---|
| Parameter Setting | The device can set detection parameters according to different product requirements, allowing one device to be used for multiple products. |
| Testing Function | Features a one-key automatic detection function, which automatically assesses whether the test is qualified (green light for qualified, alarm for unqualified with red light). |

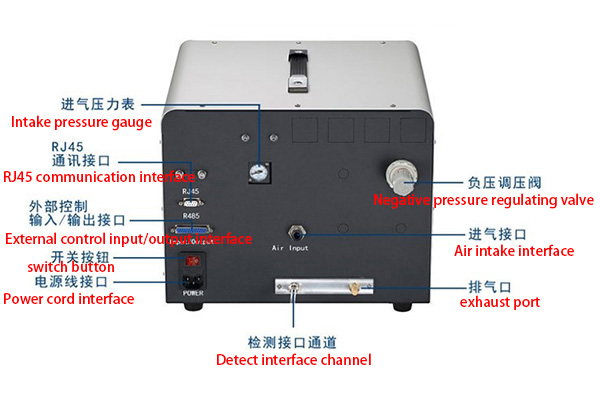

| Signal Input/Output Interface | Multiple signal input and output interfaces, equipped with communication interfaces (can connect to computers, barcode scanners, external control switches) for easy external control without frequent operations on the device. |
| Test Record Storage | Can connect to computers and barcode scanners; product testing records will automatically generate a folder on the computer for data management and quality tracking. |
| Touch Screen | Adopts a 7-inch LCD touchscreen from Weizen, with customizable user interfaces per customer requirements. |
| Core Components | All core components are sourced from professional brands in Japan, Germany, and Taiwan, ensuring detection accuracy and equipment stability. |
| Communication Interfaces | Diverse communication interfaces: built-in RS232 serial port, RJ45 network port, USB communication interface, etc. |
| Pressure Range | Various range options available; pressure range: -95KPA to 3000KPa, patent applied for the ultra-high-pressure solenoid valve, ensuring no leakage under ultra-high-pressure conditions. |
| Resolution | Utilizes 24-bit AD analog-to-digital conversion technology, with detection sensitivity up to 0.02PA. |

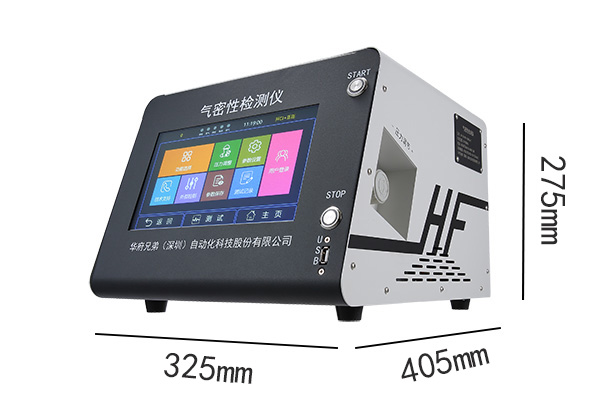

| Basic Parameters | Product dimensions: 405X325X275 (MM), product weight: approximately 14KG, power supply: AC220V, 50/60HZ. |
| Product Parameters | |
|---|---|
| Number of Channels: | 1/2/4 |
| Pressure Types: | Positive Pressure, Negative Pressure, Positive & Negative Pressure |
| Pressure Adjustment Mode: | Manual Adjustment/Automatic Adjustment |
| Pressure Adjustment Accuracy: | ± 0.05%FS |
| Pressure Repeatability: | 0.1%FS |
| Pressure Adjustment Range: | -95 KPa – +3000 KPa |
| Sensor Selection Range: | -95 KPa – +3000 KPa |
| Sensor Accuracy: | 0.1%FS |
| Resolution: | 0.1 Pa |
| Function Introduction | |
|---|---|

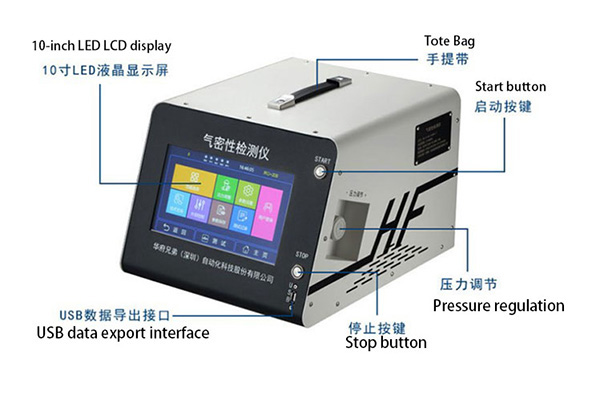

| Touch Screen: | 10 inch color LCD |
| Operation Interface: | WAFU UI |
| Languages: | Chinese, English, Japanese, German, Spanish, Russian (other languages customizable) |
| Programs' No.: | 16/99 groups program |
| Judgment/Alarm: | Automatic Decision/Sound + Light Alarm |
| Control I/O Port: | Input/output, 4 relay control functions (safety grating, solenoid valve, and red and green warning light can be connected) |
| Serial port Communication (RS485): | Receive External PLC Control Signal, Connect to the workstation |
| USB: | Software Update, Bar Code Scanning Gun |
| Barcode Scanning: | Bar Code |
| Historical Records: | It can store 100,000 test results and upload them to the computer via USB flash drive. |
A leak detection instrument is a device used to detect whether an object has leaks. It helps manufacturers, technicians or laboratory personnel check the seal integrity of a product. Pressure testing of butt-sealed components ensures that the product will not leak gas during use, thereby improving safety and quality.
Clean the sensors and pipes of the instrument to prevent dust accumulation from affecting detection accuracy.

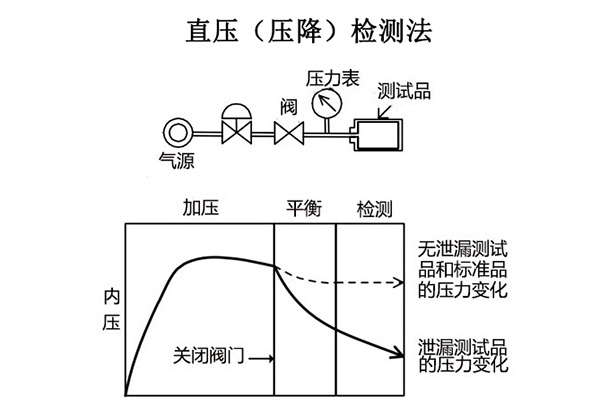

Pressure decay method: detect leaks by measuring changes in gas pressure within the sealed object
Flow method: Determine seal integrity by measuring the flow rate of leaking gas.
