Multi-channel leak testersr
-
Type: WF Series 6th Generation
WF sixth generation multi-channel air tightness tester is an efficient and calibrated multi-channel air tightness testing equipment. It has been continuously iterated by WaFu Brothers for 16 years. It can test multiple products at the same time. Air tightness testing, IPX waterproof testing, the detection accuracy is as high as 1Pa, and the speed is as fast as 3 seconds. This air tightness testing equipment can be customized with multiple testing methods such as differential pressure method, flow method, direct pressure method, etc. It can be widely used in automobiles, aerospace, electronic equipment, medical equipment and other fields. Through high-precision sensing technology, the equipment can detect small leakage problems and ensure that each product meets the sealing performance requirements.
Contact us

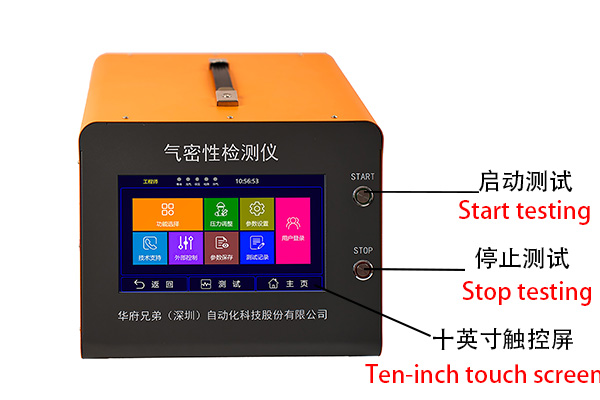

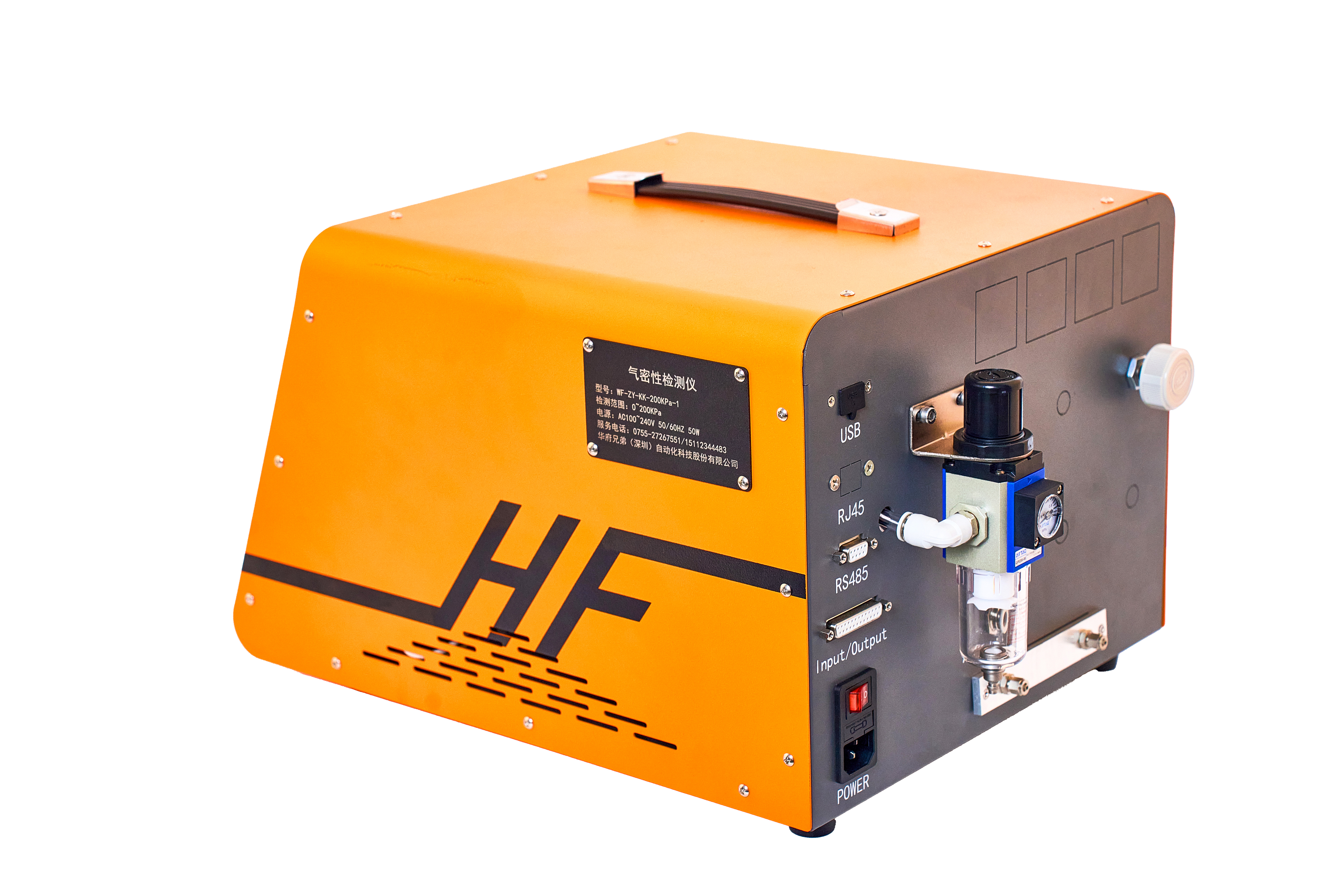

Details display

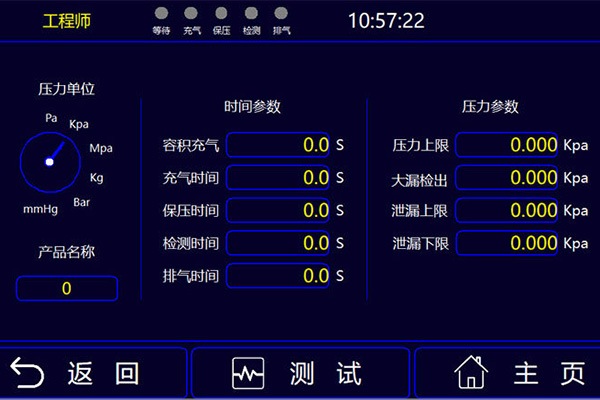

Interface UI

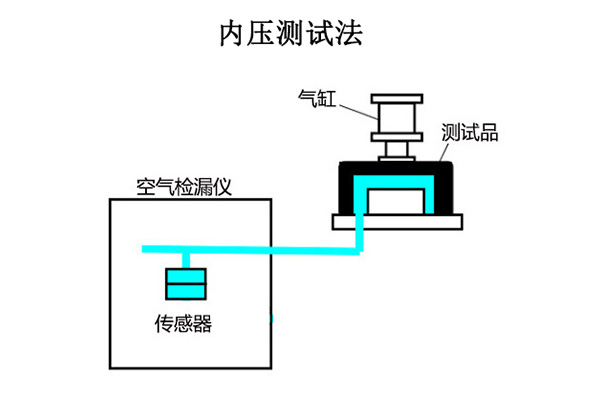

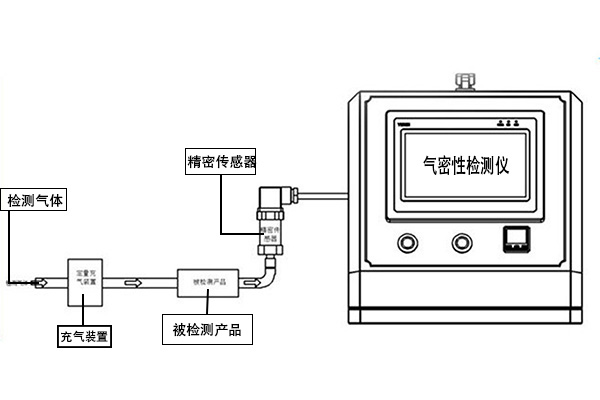

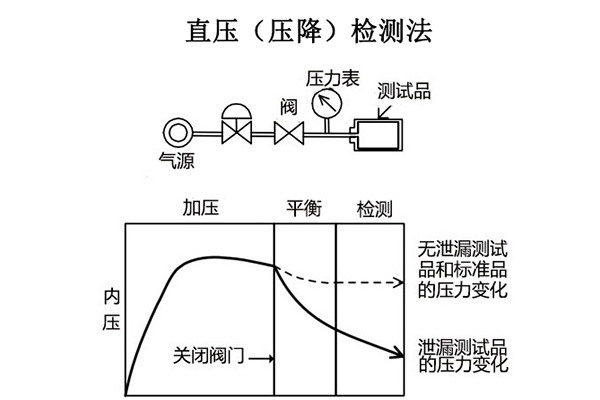

Detection method
Product advantages
一、Wide range of applications
二、Various testing methods
三、Multiple patents
四、Up to eight channels
Product parameters
| Product Benefits | |
|---|---|
| Parameter Setting | The device can set detection parameters according to different product requirements, allowing one device to be used for multiple products. |
| Testing Function | Features a one-key automatic detection function, which automatically assesses whether the test is qualified (green light for qualified, alarm for unqualified with red light). |

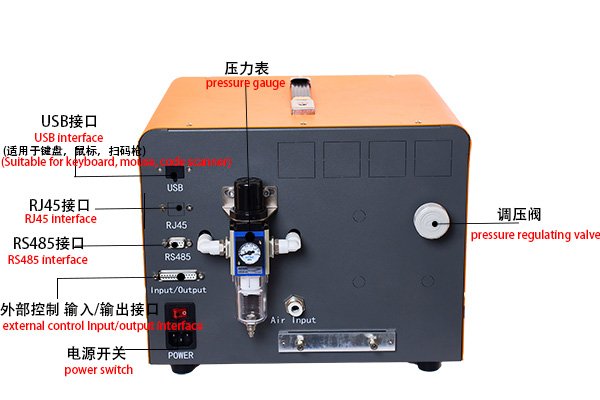

| Signal Input/Output Interface | Multiple signal input and output interfaces, equipped with communication interfaces (can connect to computers, barcode scanners, external control switches) for easy external control without frequent operations on the device. |
| Test Record Storage | Can connect to computers and barcode scanners; product testing records will automatically generate a folder on the computer for data management and quality tracking. |
| Touch Screen | Adopts a 10-inch LCD touchscreen from Weizen, with customizable user interfaces per customer requirements. |
| Core Components | All core components are sourced from professional brands in Japan, Germany, and Taiwan, ensuring detection accuracy and equipment stability. |
| Communication Interfaces | Diverse communication interfaces: built-in RS232 serial port, RJ45 network port, USB communication interface, etc. |
| Pressure Range | Various range options available; pressure range: -95KPA to 3000KPA, patent applied for the ultra-high-pressure solenoid valve, ensuring no leakage under ultra-high-pressure conditions. |
| Resolution | Utilizes 24-bit AD analog-to-digital conversion technology, with detection sensitivity up to 0.02PA. |

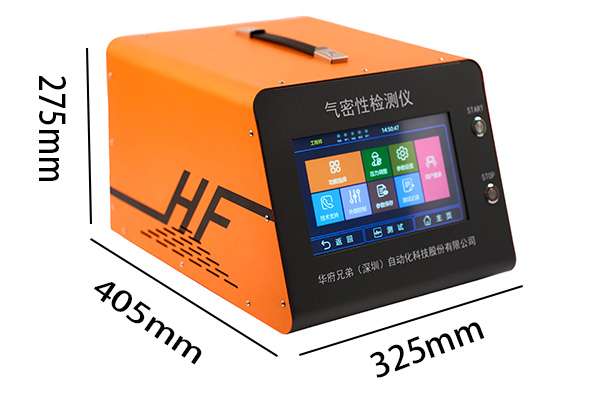

| Basic Parameters | Product dimensions: 405x325x275 (MM), product weight: approximately 14KG, power supply: AC220V, 50/60HZ. |
| Product Parameters | |
|---|---|
| Number of Channels: | 1/2/4 |
| Pressure Types: | Positive Pressure, Negative Pressure, Positive & Negative Pressure |
| Pressure Adjustment Mode: | Manual Adjustment/Automatic Adjustment |
| Pressure Adjustment Accuracy: | ± 0.05%FS |
| Pressure Repeatability: | 0.1%FS |
| Pressure Adjustment Range: | -95 KPa ~ +3000 KPa |
| Sensor Selection Range: | ± 1 KPa KPa, ± 2 KPa KPa, ± 5 KPa ± 10 KPa, |
| Sensor Accuracy: | 0.02%FS-0.05%FS |
| Resolution: | 0.1 Pa |
| Function Introduction | |
|---|---|
| Touch Screen: | 10 inch Color LCD |
| Operation Interface: | WAFU UI |
| Languages: | Chinese, English, Japanese, German, Spanish, Russian (other languages customizable) |
| Programs' No.: | 16/99 groups program |
| Judgment/Alarm: | Automatic Decision/Sound + Light Alarm |
| Control I/O Port: | Input/output, 4 relay control functions (safety grating, solenoid valve, and red and green warning light can be connected) |
| Serial port Communication (RS485): | Receive External PLC Control Signal, Connect to the workstation |
| USB: | Software Update, Bar Code Scanning Gun |
| Barcode Scanning: | Bar Code |
| Historical Records: | It can store 100,000 test results and upload them to the computer via USB flash drive. |
